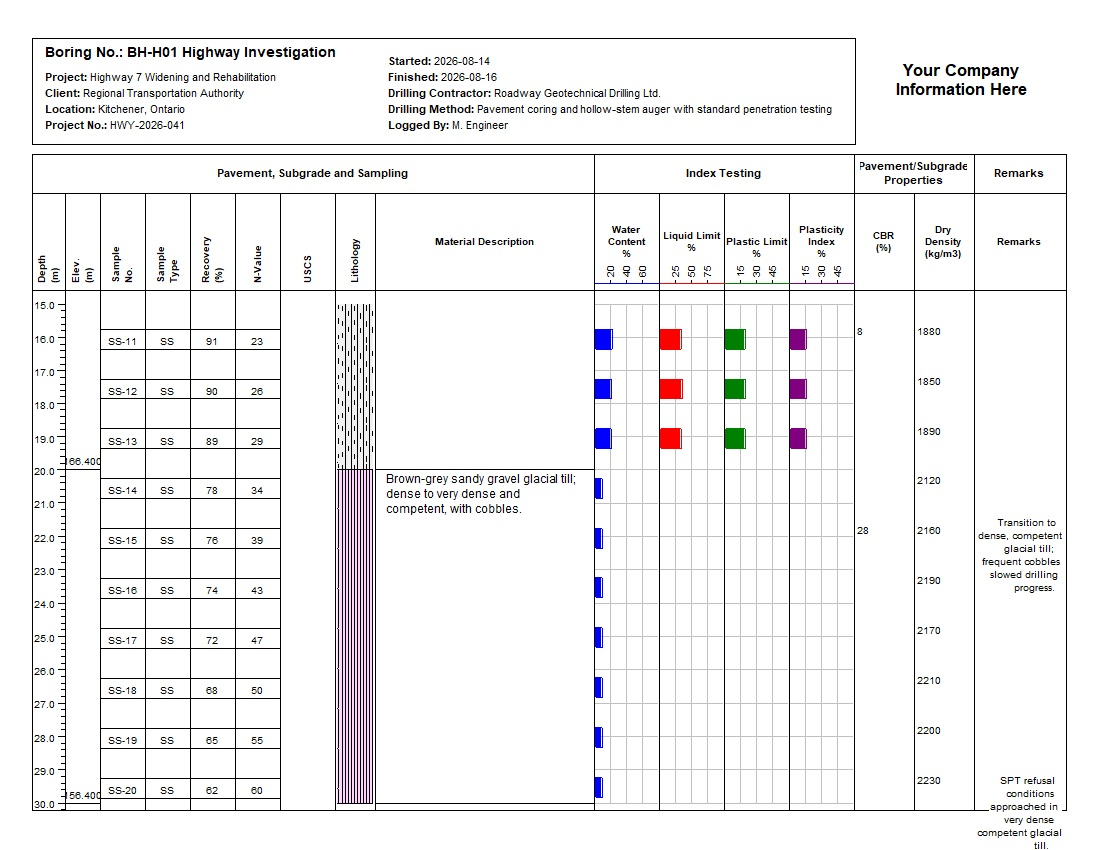

This example shows how WinLoG organizes field and laboratory information for pavement design and roadway rehabilitation. BH-H01 Highway Investigation presents asphalt, granular base and subbase, embankment fill, native subgrade, twenty split-spoon samples, SPT N-values, recovery, water content, Atterberg Limits, CBR, dry density, and drilling remarks.
The 30 m Kitchener, Ontario boring supports the Highway 7 Widening and Rehabilitation project. Automated validation reports 57% completeness, Fair quality, 70% confidence, one warning, and no errors. The warning identifies a subgrade CBR of 4% at 5.25 m against an applicable design criterion of at least 5%.
This record demonstrates how pavement structure and subsurface materials can be interpreted beside water content, Atterberg Limits, SPT results, CBR, dry density, elevations, groundwater, and drilling observations. All datasets share a common depth scale for efficient roadway review.
The supplied validation report records Warnings status, 57% completeness, Fair quality, a 70% confidence score, zero errors and one warning. The low CBR result demonstrates how WinLoG identifies pavement-support conditions requiring engineering review.
Download the example files individually. The XML template and log can be imported into WinLoG Version 6 and customized for company-specific geotechnical workflows.
Demonstrates a practical workflow combining pavement structure, lithology, SPT, recovery, index properties, CBR, density, and drilling observations.
Shows how pavement, moisture, index-property, penetration, sampling, and engineering-property results can share a common depth-based presentation.
Provides an integrated record for reviewing SPT, recovery, moisture, consistency limits, CBR, dry density, groundwater, and validation findings together.
WinLoG templates can be customized to match company standards, project requirements, and agency formats. Pavement layers, sampling columns, index-testing scales, CBR criteria, engineering-property displays, and validation rules can be tailored to project and organization requirements.
