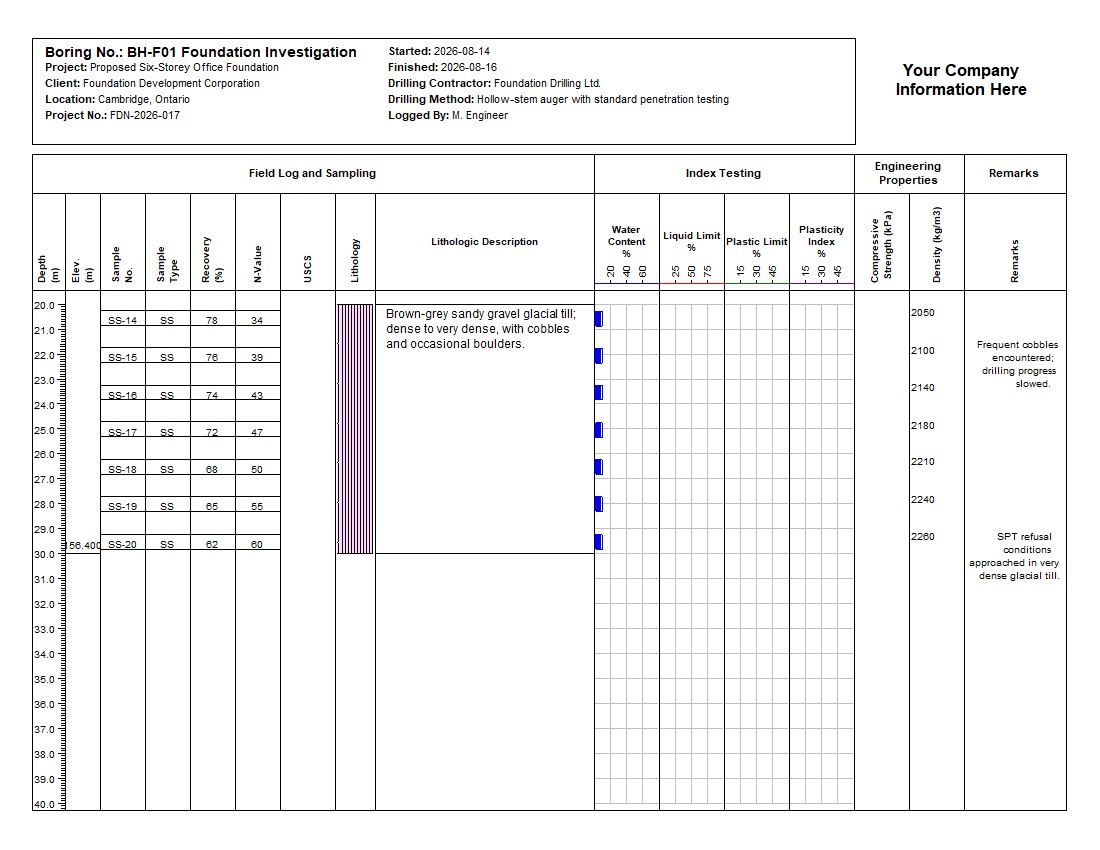

This example shows how WinLoG organizes the field and laboratory information used for foundation design. BH-F01 Foundation Investigation presents lithology, twenty split-spoon samples, SPT N-values, recovery, water content, Atterberg Limits, compressive strength, density, elevations, and drilling remarks on a professional two-page log.
The 30 m Cambridge, Ontario boring supports a proposed six-storey office foundation and includes fill, sand, silty clay, clayey silt, and dense sandy gravel glacial till. Automated validation passes with 60% completeness, Fair quality, 73% confidence, and no errors or warnings.
This record demonstrates how soil descriptions and sampling data can be interpreted beside water content, Atterberg Limits, SPT results, compressive strength, density, elevations, and drilling observations. All datasets share a common depth scale for efficient foundation review.
The supplied validation report records Passed status, 60% completeness, Fair quality, a 73% confidence score, zero errors and zero warnings, plus one informational review message.
Download the example files individually. The XML template and log can be imported into WinLoG Version 6 and customized for company-specific geotechnical workflows.
Demonstrates a practical workflow combining lithology, SPT, recovery, index properties, strength, density, and drilling observations for foundation design.
Shows how moisture, index-property, penetration, sampling, and engineering-property results can share a common depth-based presentation.
Provides an integrated record for reviewing SPT, recovery, moisture, consistency limits, strength, density, and completeness together.
WinLoG templates can be customized to match company standards, project requirements, and agency formats. Sampling columns, index-testing scales, engineering-property displays, and validation rules can be tailored to project and organization requirements.
