Browse all 4 examples in this section. Select a log to preview it, download the supporting files, or open its detailed example page.
examples in this category
WinLoG templates can be configured for many specialized subsurface data-collection and reporting workflows.

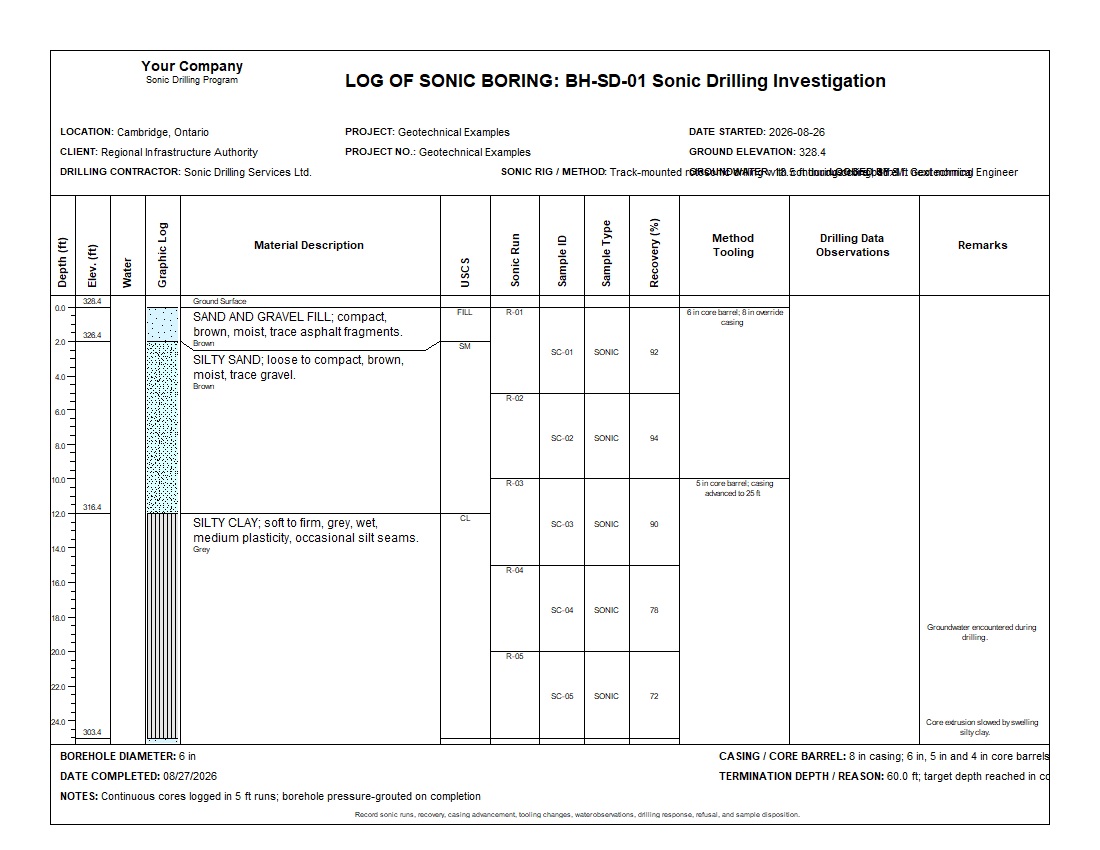

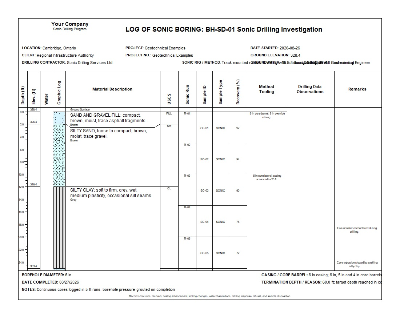

A complete 60 ft sonic boring with continuous five-foot runs, recovery, USCS classifications, groundwater, tooling changes, casing advancement, drilling observations, and weathered shale termination.
Highlights: Continuous Sonic Core, 12 Runs, Recovery, USCS, Tooling, Groundwater, Drilling Observations.

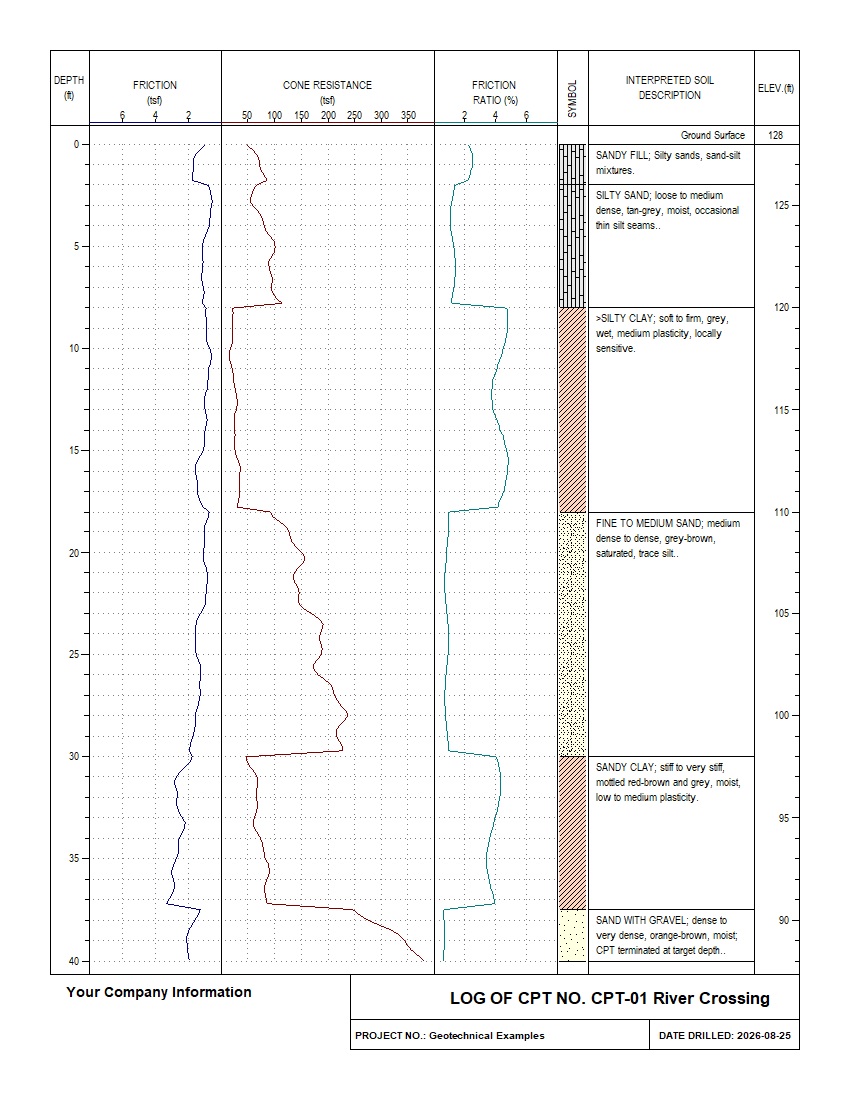

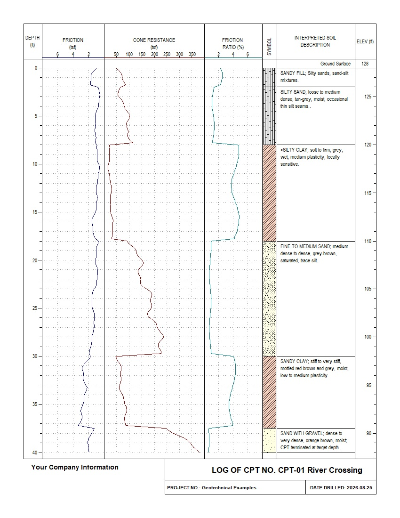

A complete 40 ft cone penetration test sounding with continuous cone resistance, sleeve friction, friction ratio, and six interpreted soil intervals.
Highlights: Cone Resistance, Sleeve Friction, Friction Ratio, Interpreted Stratigraphy, Single-Page Log.

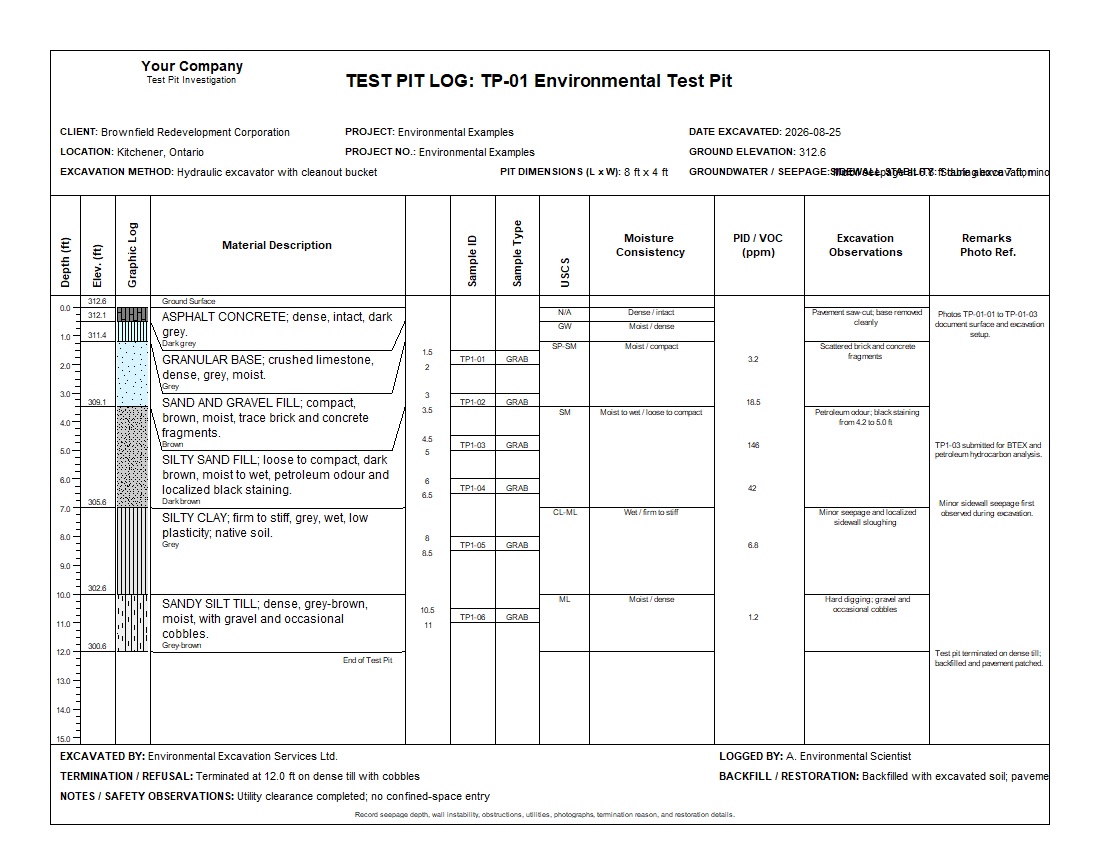

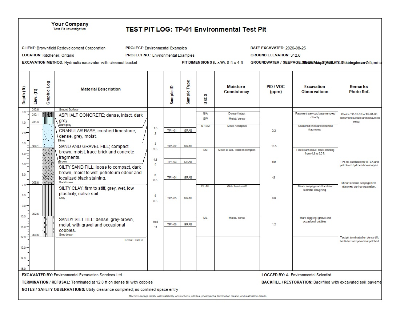

A complete 12 ft environmental test-pit log with pavement, fill, native soils, grab samples, USCS classifications, PID/VOC screening, seepage, excavation observations, photographs, and restoration details.
Highlights: Shallow Excavation, Grab Samples, USCS, PID/VOC, Impacted Soil, Seepage, Photo References.

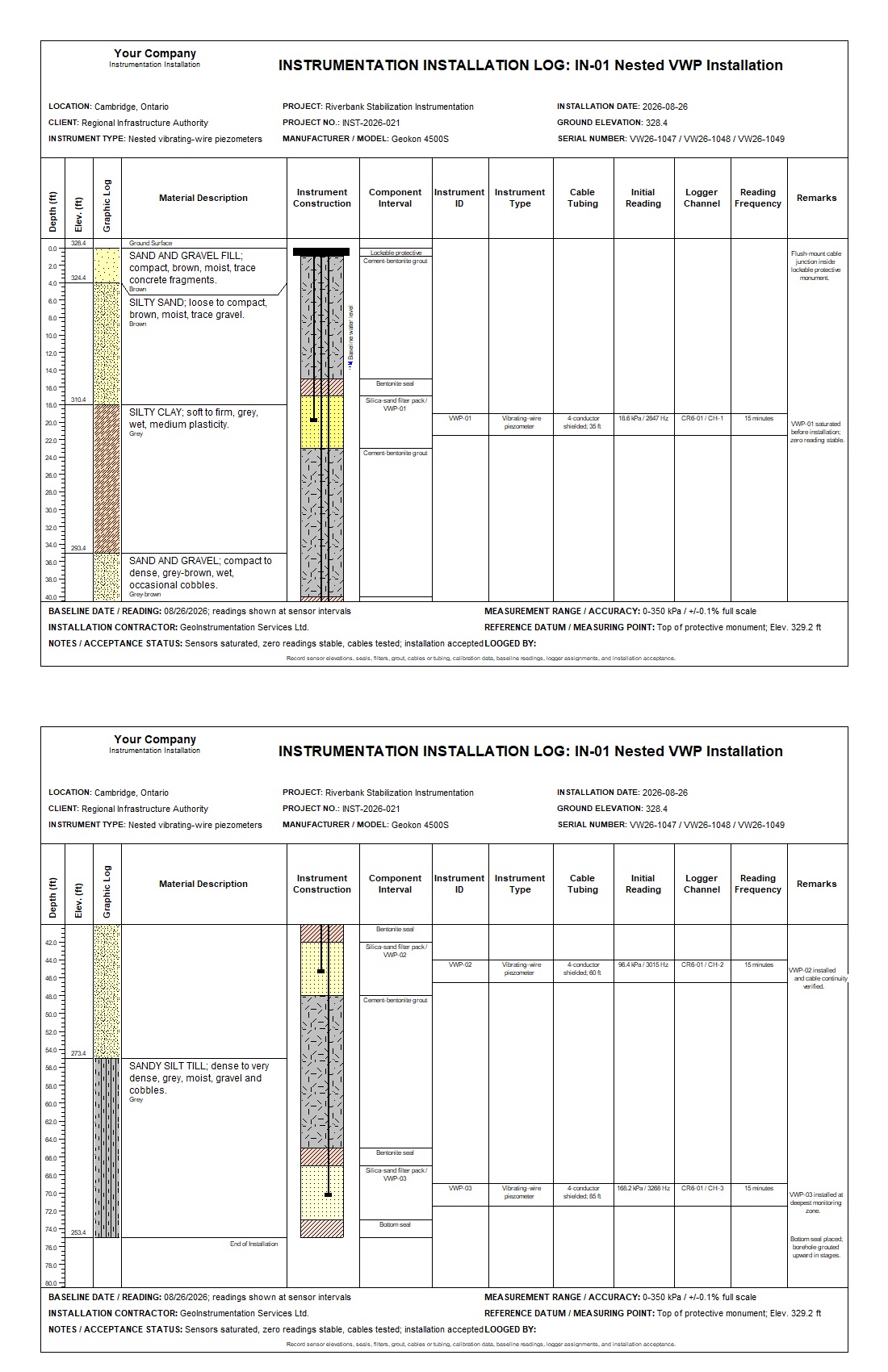

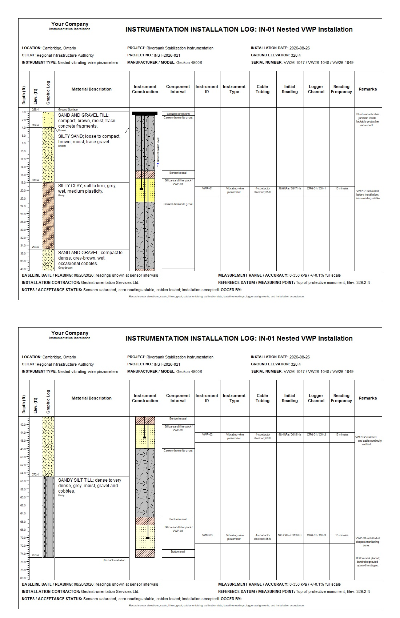

A complete 75 ft nested vibrating-wire piezometer installation log with subsurface conditions, graphical construction, isolated filter zones, cables, baseline readings, logger channels, monitoring frequency, and acceptance notes.
Highlights: 3 VWP Sensors, Sand Filter Packs, Bentonite Seals, Grout, Shielded Cables, Baseline Readings, Datalogger Channels.
WinLoG XML templates can be customized to match company standards, project requirements, and agency formats.
Download example XML templates and logs, import them into WinLoG, and adapt them for your own projects.
Contact GAEA Technologies for assistance selecting or customizing a WinLoG template.
