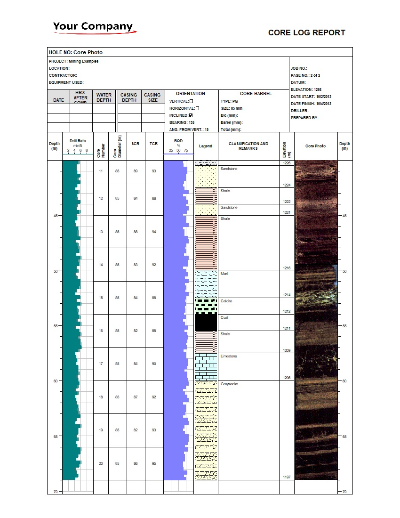

This example presents a 69 m mineral-exploration core hole using two coordinated log sheets. It combines drilling rate, core number and diameter, SCR, TCR and RQD, standardized lithology symbols, classification remarks, elevation and continuous core photography.
The photographic track is aligned directly with the measured-depth scale and interpreted lithology, making it easy to compare visible core condition with recovery and rock-quality data. Automated validation completed with 100% completeness, 85% confidence, and no errors or warnings.
The example places the core photograph beside elevation, classification remarks and standardized lithology. This provides a direct visual audit trail for interval boundaries and rock descriptions without separating photographs from the analytical log.
Core-quality measurements are displayed for twenty numbered intervals using an 85 mm PQ core barrel. RQD is plotted as a continuous bar profile, while SCR and TCR values remain visible as interval data for efficient recovery and rock-quality checks.
Review the finished log and validation report, or load the XML log and template into WinLoG.
